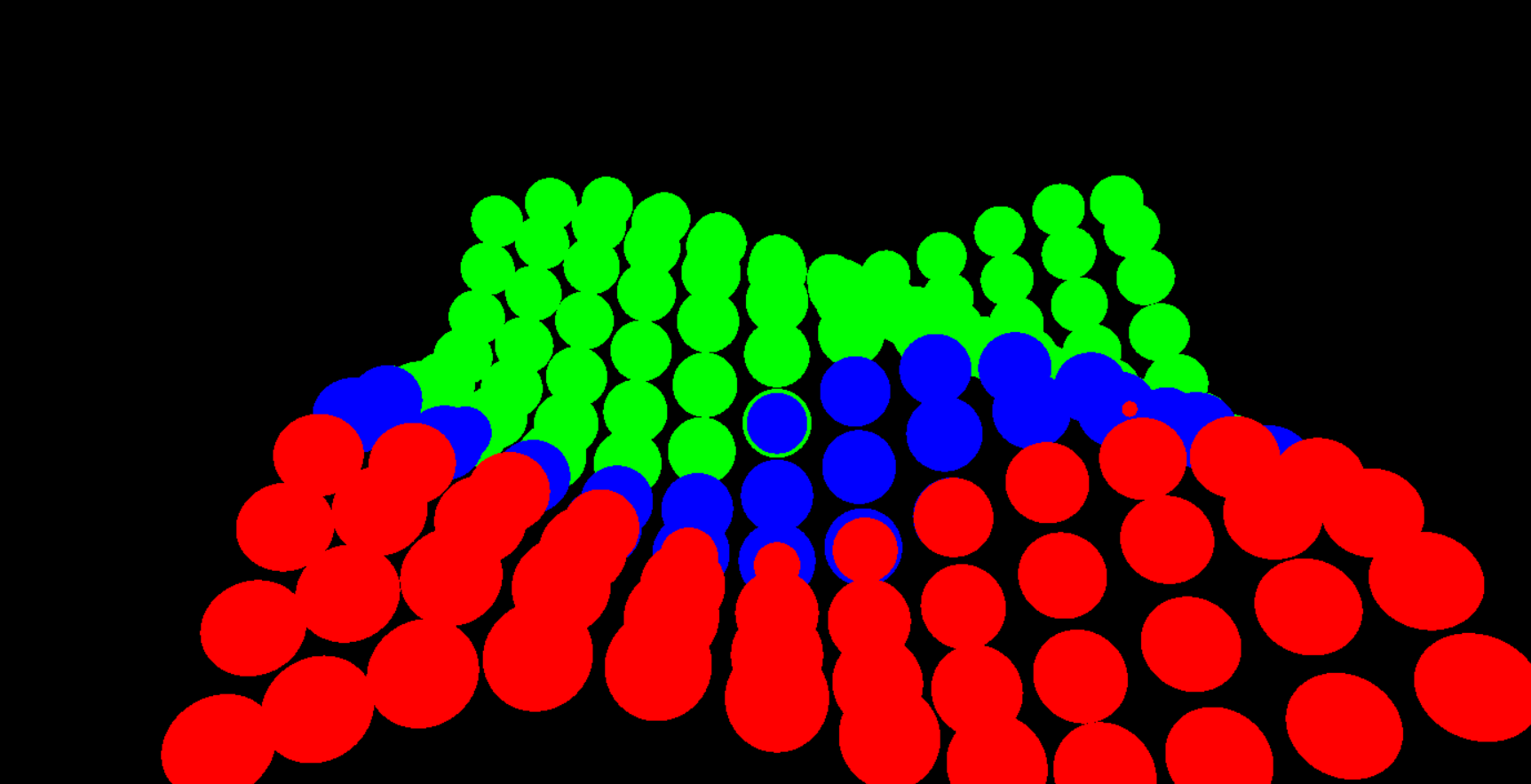

Not a part of the pipeline (and also a picture from a different scene than the first picture), but this shows where different pixels have been classified. Green is the background, blue is the focal-plane, and red is the foreground.
